Volkswagen GTI8 Wheel Bolts Case Study｜Which Vehicle Models Use M14 × 1.5 Bolts?
Wheel bolts with an M14 × 1.5 thread specification are widely used across the Volkswagen Group (VAG Group) on mid-to-large platforms. It is not only used on the Golf GTI 8, but also fits models such as the Golf Mk5 / Mk6 / Mk7 / Mk8 (including GTI / R), Passat B7 / B8 / B9, Tiguan Mk1 / Mk2 / Mk3, Arteon, T-Roc / T-Cross / Taigo, ID.4 / ID.5 / ID. Buzz, and Caddy (Mk5).
For many Volkswagen GTI owners, their vehicle is more than just transportation—it's an extension of performance and personality. Among all aftermarket components, wheel bolts are often overlooked, yet they directly impact driving safety and the overall driving experience.

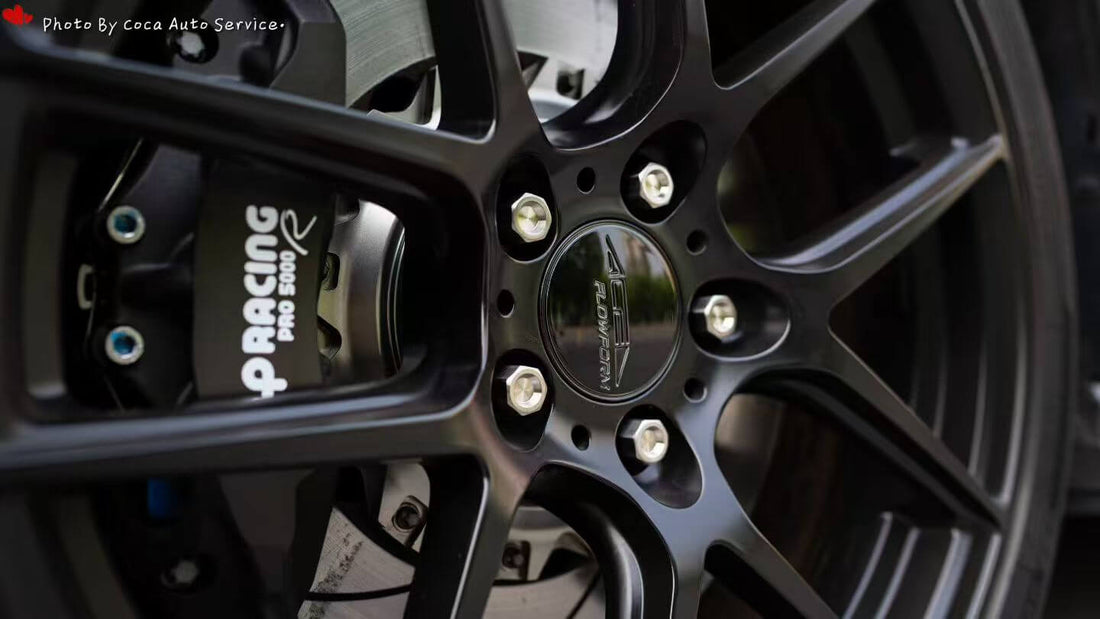

Using the Volkswagen GTI 8 (Golf GTI Mk8) as an example, this article details the installation of ACE forged wheels paired with forged titanium alloy bolts. It systematically covers OEM bolt dimensions, selection methods, and explains why upgrading to AUMOTOR's high-performance BONOSS forged titanium alloy wheel bolts represents a choice that balances safety and aesthetics.
I wanted to replace the factory bolts on my wheels, so I purchased a complete set of wheel bolts with anti-theft functionality. The product quality is excellent, and they fit perfectly. Highly recommended!
I. What size are Volkswagen GTI8 wheel bolts?
Volkswagen GTI8 wheel bolts feature an M14 × 1.5 mm thread specification. The bolt length is approximately 27 mm (excluding the nut head), with a hex head size of 17 mm. The seat type is Ball / Radius Seat. This specification is widely used across multiple Volkswagen Group (VAG) models, including the Golf R, GTI Mk7, and select Audi A3/S3 variants.
Note that different GTI versions (e.g., those equipped with 19-inch Performance wheels or using wheel spacers) may have varying bolt lengths. When using 10 mm spacers, 37 mm long bolts should be selected to maintain sufficient thread engagement length. OEM bolts typically have a strength rating of 10.9, sufficient for daily driving and light performance use.
II. How do I know what size of Volkswagen GTI8 wheel bolts I need?
Selecting the correct Volkswagen GTI8 wheel bolt size hinges on three matching principles: thread specification, socket shape, and effective length.
Thread Size Matching
The GTI8 standard is M14 × 1.5, indicating a thread diameter of 14 mm and a pitch of 1.5 mm. Forced installation with mismatched threads will fail to secure properly and may damage the wheel hub or axle.
Seat Type Matching
Original Volkswagen wheels use a ball seat, while aftermarket wheels (e.g., BBS, OZ, WORK) typically feature a conical seat. An incorrect seat type may result in insufficient contact area, causing uneven force distribution after tightening. This risks wheel vibration, loosening, or even breakage. Always verify the wheel's seat design before installation.
Bolt Length
The correct bolt length must ensure at least 6 full threads (approximately 10 mm of thread engagement) between the bolt and the wheel's spline seat.
If using wheel spacers, add the spacer thickness to the original bolt length to ensure a secure connection. For example, installing an 8 mm spacer requires selecting 35 mm long Volkswagen GTI8 wheel bolts.
Practical recommendation: Remove the original vehicle bolts and measure their length, using the distance from the thread end to the contact point with the mounting surface as the reference value. After confirming the hub seat type, select high-strength bolts of the same type.
III. Are larger Volkswagen GTI8 wheel bolts always stronger?
Many owners mistakenly believe that “bigger and longer” bolts are inherently stronger. In reality, bolt strength depends not solely on size, but on material grade, heat treatment process, thread precision, and surface protection.
Key factors determining strength:
Material Grade
OEM Volkswagen GTI8 wheel bolts are typically high-strength alloy steel (Grade 10.9), while aftermarket products like BONOSS utilize Ti-6Al-4V titanium alloy (Grade 5 Titanium), achieving an optimal balance between weight reduction and tensile strength. Titanium alloy has a density of only about 57% that of steel yet boasts a tensile strength of up to 895 MPa.
Heat Treatment and Surface Processes
Premium bolts typically undergo rolled threading to enhance fatigue strength and shear resistance. Anodized or nitrided titanium coatings are applied to prevent rust and electrochemical corrosion.
Design Tolerances and Stress Distribution
“Larger” bolts that aren't structurally matched to requirements may actually cause stress concentration at the wheel hub. True strength gains stem from rational material design and assembly compatibility, not merely increasing thread diameter.
Thus, bigger doesn't necessarily mean stronger—lighter materials with superior rigidity are key. This is why AUMOTOR's high-performance BONOSS forged titanium alloy Volkswagen GTI8 wheel bolts are favored by performance-oriented owners.
IV. Why Choose AUMOTOR's High-Performance BONOSS Forged Titanium Wheel Bolts?
Compared to OEM steel bolts, AUMOTOR's high-performance BONOSS Forged Titanium Wheel Bolts offer the following advantages:
- Ultra-lightweight design: Each bolt weighs approximately 40% less than OEM steel bolts, reducing rotational inertia and enhancing acceleration and braking response.
- Exceptional corrosion resistance: Titanium resists rust in humid environments, making it ideal for prolonged outdoor or coastal use.
- Enhanced aesthetics: Anodized surface finishes offer multiple color options (e.g., Titanium Silver, Blue Titanium), blending visual appeal with performance.
- Enhanced Safety Factor: Forged through high-intensity processes, the internal metal grain structure is dense and uniform, delivering tensile and shear strength far exceeding OEM standards.
Taking the Volkswagen GTI8 as an example, installing AUMOTOR's high-performance BONOSS titanium alloy bolts not only reduces wheel-end weight by approximately 0.8 kg but also maintains stable clamping force during aggressive driving or track conditions, further unlocking the GTI's chassis performance.
V. Conclusion: Balancing Safety and Performance
For car owners, selecting the correct Volkswagen GTI8 wheel bolts is one of the most easily overlooked yet critical aspects of modification.
Whether replacing OEM parts or upgrading for performance, adhering to these principles ensures both safety and performance:
- Thread Match: M14 × 1.5 (Volkswagen GTI 8 standard)
- Seat Type Matching: OEM wheels use spherical seats; aftermarket wheels require confirmation of tapered seat compatibility
- Length Adaptation: OEM length 27 mm; extend proportionally based on shim thickness
- Material Selection: Prioritize titanium alloy and steel alloy
Choosing AUMOTOR's high-performance BONOSS forged titanium alloy wheel bolts isn't just an aesthetic upgrade—it's a precise investment in safety and performance. Each bolt unleashes the GTI's sporting DNA to its fullest potential.
